Mobile Broadcast Trailer

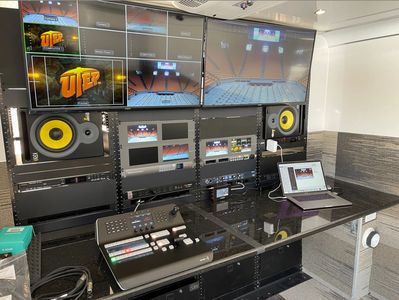

30' Trailer with control room and storage

This is a 30' trailer that is fully self contained with on board power generator, air conditioning and Microwave ptp antennas.

Black Magic Design Video Switching

All Routing and switching hardware is Blackmagic Design.

Current Switchers:

Blackmagic Design ATEM 4 Switcher

Blackmagic Design Production Studio

ATEM 1 control


Replay Server

4 in 2 out instant replay server with control panel. System can also be used to record 4 feeds simultaneously.


Cameras

2- JVC HM750 with Canon Lens 20x

2- Go Pro with Mounts

5- Canon XA45

4- Blackmagic URSA MINI 2

*More camera Options available

Audio

1 Alen and Heath Avantis 64 Channel Console

1- AH4816 Stage Rack

*Mics are sent out per project.

*Wide Verity of wired and wireless mics available


Communication

Truck has on board Clear Com wired system

15- Camera Body packs with Headsets

16- 2 way Radios with local and repeated Channels.

Cable / Fiber Runs

Truck has fiber runs of up to 1000'

Truck has SDI and XLR cable bins.





**** All specs are subject to change at any time. Truck is constantly undergoing upgrades. This is the minimum the truck goes out with.
